SS9605-10-L15-22 (STAINLESS MJIC X MALE DIN2353L)
SS9605-10-L15-22 (STAINLESS MJIC X MALE DIN2353L)
Regular price
$101.36 USD
Regular price
Sale price
$101.36 USD
Unit price
per
Couldn't load pickup availability
Specifications
| Side 1 | ||
|---|---|---|
| Type | Gender | Size |
| JIC | Male | 5/8" |
| Thread | Relevant Standard(s) |
|---|---|
| 7/8 - 14 UNF | SAE J514 / ISO 8434-2 |
| Side 2 | ||
|---|---|---|
| Type | Gender | Size |
| DIN TUBE | Male | L15 |
| Thread | Relevant Standard(s) |
|---|---|
| M22 X 1.5 | ISO 8434-1 / DIN 2353 |

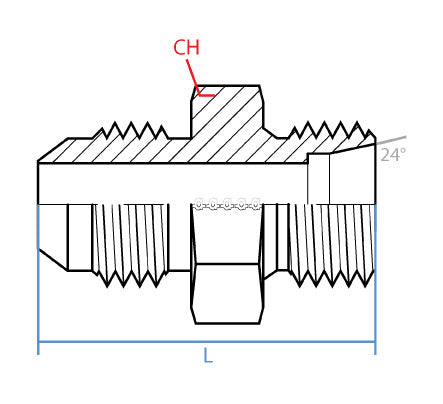

Dimensions
| L (Length) |
|---|
| 44.2mm |
| CH (Width) |
|---|
| 27mm |
